GUTTER SYSTEMS
Insulated and Membrane lined Gutters
Insulated & Membrane Gutter Systems
Our insulated and membrane gutter systems are designed to deliver enhanced thermal performance, improved condensation control, and long-term waterproofing for modern industrial and commercial buildings.
By combining structural strength with advanced materials, these systems provide a reliable and durable solution for roof drainage in more demanding environments.
Insulated gutters are constructed using an internal liner sheet, high-performance rigid foam insulation, and a galvanised steel outer gutter, creating a thermally efficient build-up that helps minimise cold bridging and reduce the risk of condensation.
This makes them particularly suitable for buildings where internal climate control is important.

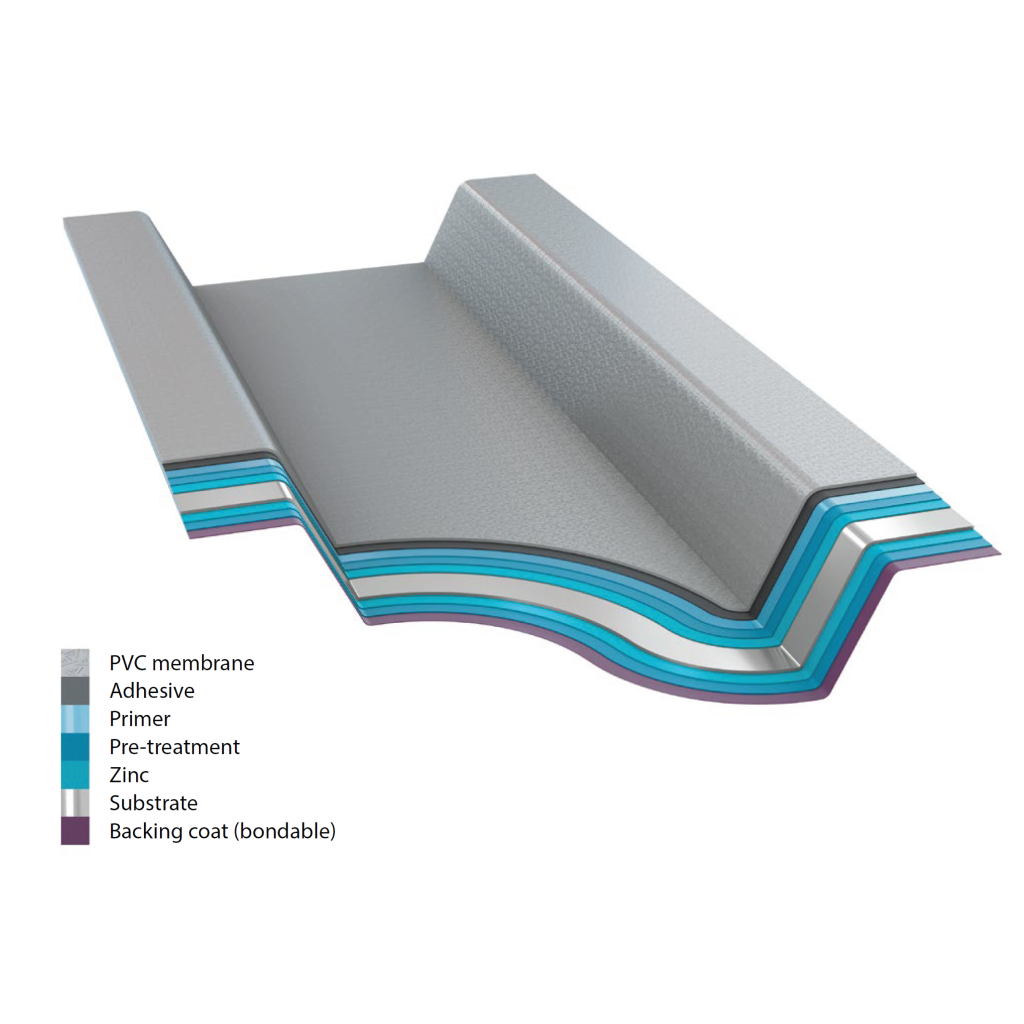

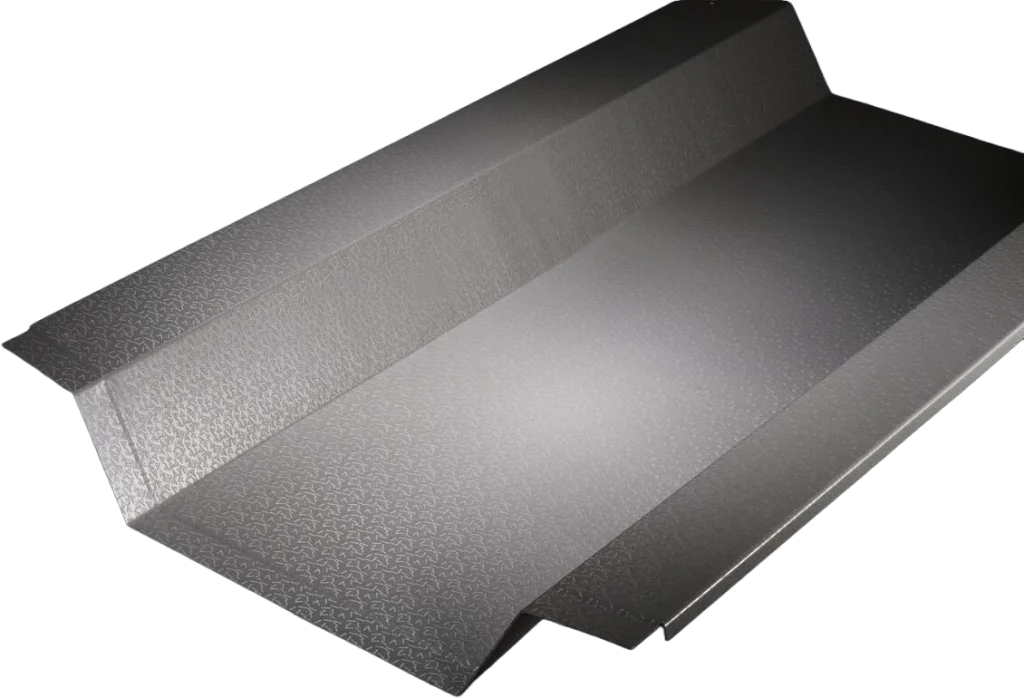

For additional protection, our membrane-lined gutters incorporate the Tata Aquatite system, offering a fully sealed, flexible waterproof barrier. This ensures excellent resistance to standing water and significantly reduces the risk of leaks over time.
Manufacturing Limits
8.200m
Maximum Length
Aquatite Bonded Galvanised Steel, Polyester Coated Steel
Liner Options
1.6, 2.0mm
Gutter Base Gauges
Core Thickness 20mm Increments
Insulation Options
Insulated Gutter Systems
Our insulated gutter systems are designed to enhance the thermal performance of the building envelope at the roof edge—one of the most critical areas for heat loss and condensation risk. By incorporating insulation within the gutter construction, these systems help maintain internal environmental conditions while ensuring effective rainwater drainage.
The gutter build-up typically consists of an internal liner sheet, a layer of high-performance rigid PIR (polyisocyanurate) insulation, and a galvanised steel outer gutter. This composite construction reduces thermal bridging at the eaves and helps prevent cold spots forming within the building.
Typical Applications
Insulated gutters are particularly suited to buildings where temperature control, hygiene, or moisture management are critical:
- Cold storage and chilled distribution facilities
- Food production and processing plants
- Pharmaceutical and clean environments
- High-spec industrial and commercial buildings
- Any application where condensation risk must be minimised
Integration with Membrane Systems
Insulated gutters can also be combined with membrane linings, such as Tata Aquatite, to provide an additional waterproof barrier where required. This allows systems to be tailored to meet both thermal and waterproofing performance demands.
