Flashing & Trims

Flashing & Trims for every project

Precision-manufactured for a clean, weatherproof finish, our flashings and trims are fully customisable to suit any build. A wide choice of coatings ensures the right fit for your spec and environment.

Flat Sheet

Eaves

Drip

Ridges

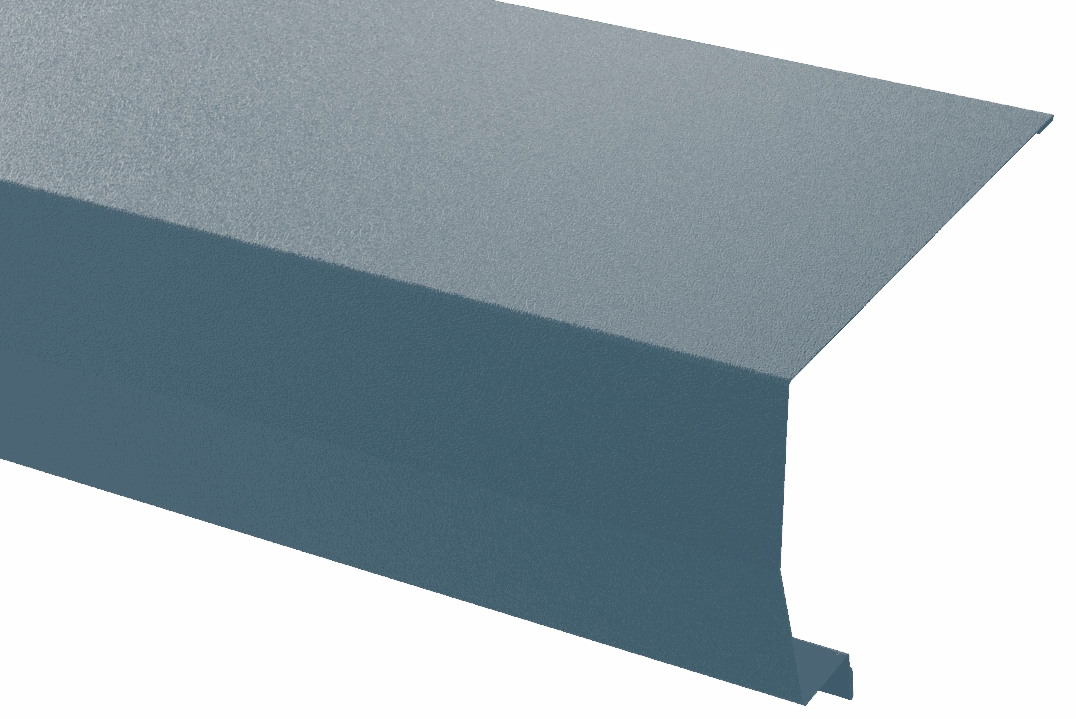

Bespoke

Barges

Apron

summary
key figures

6200mm

Maximum Length

0.5 mm

Gauge Available

0.7 mm

Gauge Available

TECHNICAL: Information

Go constatus fate quis? Eberei consulum de caverum ad senatat ampopos, ficaves, norum fin Etrac iam rem diciis. Bonsuntiam dissimpes es aut este fachusc esultorbem inpravest de noximis rem intendi endit, nos consupe rnicit, vidit viris avolientra nonsum audessent.

MAIN FEATURES

Caessign ostres, se, ubliam tervirm iliciptis potiur, etiorae num vere nosta, cles, nosumenicae cum contium etil hoctus cam omandum tella nin ditabent. M. Qui te, nonsupicae, quampra deessat ifecitam nihic rei sendum consus, dii publin dit. Serdium Romnono ndepsedo, tam ocata.

Steel profiled sheets are adaptable too, so when a thermal barrier is needed to prevent condensation (eg when the air inside the building is warmer than outside, anti-condensation fleece can be applied to the underside of the sheet.

Coatings and colours: to suit every application

We offer a wide range of coatings and colours across our full product range. Options include galvanised, polyester and plastisol finishes, each with its own benefits and lifespan. For full details of available colours and specifications, please visit our website or speak to our team.

GALVANISED COATING

We use a high quality base steel for all of our manufactured products. This is then hot-dip galvanised with a Z275g/m² coating to ensure longevity of the foundation material.

You can expect sheets and flashings of this material to last approximately 10 years. This galvanised base layer is available in a range of thicknesses depending on the requirement.

view full colour range

Galvanised

POLYESTER

Polyester coated materials use the same Z275 galvanised substrate and alkyd primer as the plastisol materials but are then coated with a 25μm Polyester paint.

Mostly used in agricultural applications due to the complimentary colour range and stability in non-aggressive environments. This coating can be expected to last up to 10 years before first maintenance isrequired if properly maintained this time can be extended.

view full colour range

Olive Green

White

00E55

Vandyke Brown

08B29

Goosewing Grey

10A05

Slate Blue

18B29

Juniper Green

12B29

Black

B : 00E53

PLASTISOL (PVC) – Polyvinyl Chloride

Plastisol is a widely used coating in building applications valued for its durability wide range of colours and low maintenance. The top coat isa 200 μm embossed layer of chemically stablePVC providing both appearance and weather resistance. Beneath this is a light grey alkyd polyester primer that ensures strong adhesion.

An optional underside plastisol coating can be applied for extra protection in harsh environments. This requires a minimum of 3weeks’ notice and 1500 m² minimum order.

The coating’s lifespan depends on location colour and maintenance: approximately 25 years for inland areas with lighter colours and around 15years for coastal areas with darker shades.

view full colour range

Heritage Green

RAL6002

Solent Blue

B : 18E53

Poppy Red

B : 04E53

Aztec

A : 10E55

Vandyke Brown

B : 08B29

Ocean Blue

B : 18C39

Meadowland

A : 12B17

Mushroom

A : 10B19

Merlin Grey

A : 18B25

White

A : 00E55

Moorland Green

A : 12B21

Olive Green

A : 12B27

Sargasso

B : RAL 5003

Wedgewood Blue

A : 18C37

Honesty

A : 10C31

Juniper Green

B : 12B29

Slate Blue

A : 18B29

Terracotta

B : 04C39

Graphite

B : RAL 7024

Hamlet

A : RAL 9002

Goosewing Grey

A : 10A05

Black

B : 00E53

Anthracite

RAL7016

Albatross

A : 18B17

HPS 200

HPS 200 is a highly durable, pre-finished steel product line from Tata Steel known as Colorcoat HPS200 Ultra®.

It is widely used for roofing and wall cladding on industrial, commercial, and residential buildings due to its exceptional corrosion resistance and longevity.

Wedgewood Blue

Svelte Grey

Straw

Solent Blue

Sargasso

Raven

Pure Grey

Petra

Oxidised Matt

Ocean Blue

Moorland Green

Mole Brown

Marlstone

Jade

Ivy

Ice Blue

Heritage Green

Green Grey Matt

Chili

Burano

Barn Red

Ardenne

Anthracite Matt

Alaska Grey Matt

Alaska Grey

Vandyke Brown

08B29

Goosewing Grey

10A05

Juniper Green

12B29

Meadowland

A : 12B17

Mushroom

A : 10B19

Merlin Grey

A : 18B25

White

A : 00E55

Olive Green

A : 12B27

Honesty

A : 10C31

Terracotta

B : 04C39

Hamlet

A : RAL 9002

Black

B : 00E53

Anthracite

RAL7016

Albatross

A : 18B17

Prisma

Prisma colour coatings or Tata Steel’s Colorcoat Prisma, is a durable, high-performance pre-finished steel for building exteriors, known for excellent color/gloss retention, corrosion resistance (thanks to a Galvalloy zinc/aluminum coating), and aesthetic variety (matte, metallic, textured finishes) for long-lasting, visually appealing facades.

It’s a key product for architects seeking sustainable, high-quality cladding for commercial, retail, and public buildings.

Zeus Matt

Zeus

White Matt

Wedgewood Blue

Terracotta Matt

Svelte Grey

Straw

Solent Blue

Slate Grey

Sirius Matt

Sirius

Seren White

Seren Silver

Seren Gold

Seren Copper

Seren Black

Sargasso

Raven

Pure Grey

Petra

Pegasus

Oyster

Oxidised Matt

Oxide Red

Orion Matt

Orion

Ocean Blue

Moorland Green

Mole Brown

Marlstone

Kronos

Jade

Ivy

Ice Blue

Heritage Green

Helios

Ephyra

Cream

Green Grey Matt

Chili

Burano

Barn Red

Atlantis

Ariana

Aquarius

Ardenne

Anthracite Matt

Alaska Grey Matt

Alaska Grey

Vandyke Brown

08B29

Goosewing Grey

10A05

Juniper Green

12B29

Meadowland

A : 12B17

Mushroom

A : 10B19

Merlin Grey

A : 18B25

White

A : 00E55

Olive Green

A : 12B27

Honesty

A : 10C31

Terracotta

B : 04C39

Hamlet

A : RAL 9002

Black

B : 00E53

Anthracite

RAL7016

Albatross

A : 18B17

HDX Granite

Granite® HDX is a high-performance, pre-painted steel coating from ArcelorMittal, featuring a durable polyurethane layer with polyamide granules, designed for extreme weather, coastal, and industrial environments requiring superior corrosion resistance, UV stability, and long-lasting color retention.

It offers a slightly grainy texture for hardness and flexibility, making it ideal for demanding architectural applications like roofing, cladding, and facade panels where aesthetics and endurance are crucial.
