STRUCTURAL SECTIONS
Trimmer Cleat
The standard trimmer cleat range is designed to provide a 3mm gap between connecting sections flange and web.
We are able to manufacture trimmer cleat to suit any specific requirements when you provide a specification with manufcaturing dimensions indicated.
The standard trimmer cleat range is designed to provide a 3mm gap between connecting sections flange and web.
We are able to manufacture trimmer cleat to suit any specific requirements when you provide a specification with manufcaturing dimensions indicated.
MAIN FEATURES
MAIN FEATURES

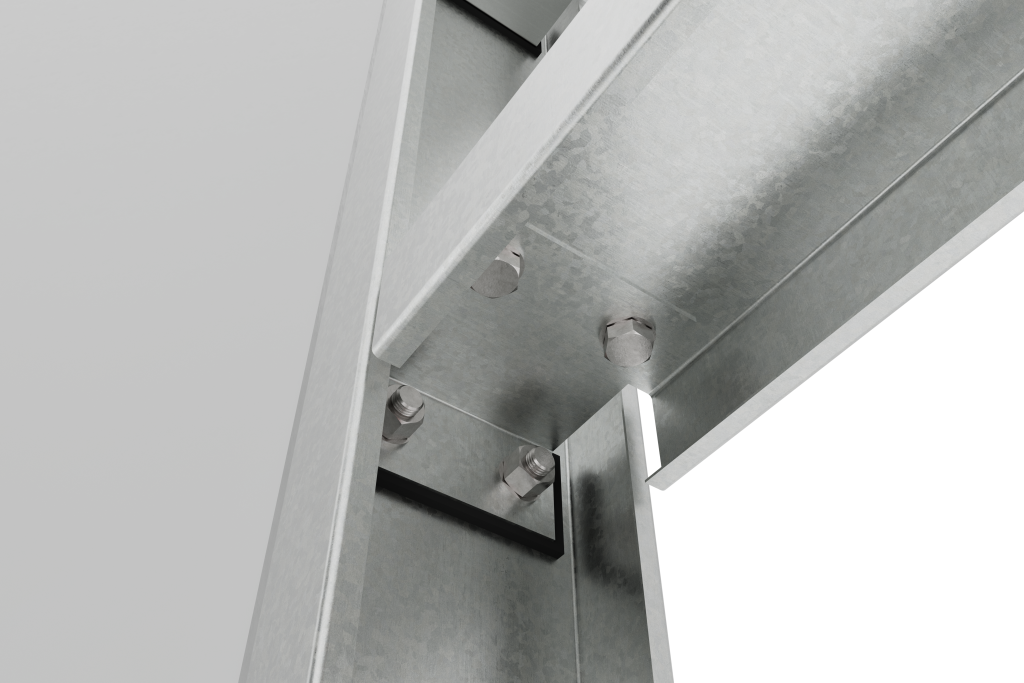

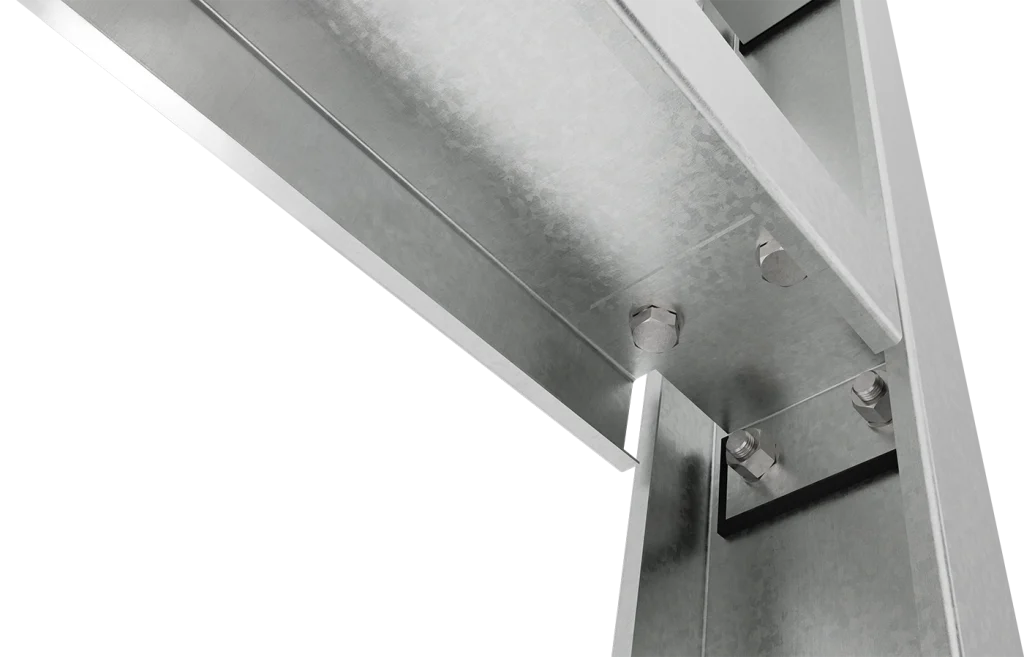

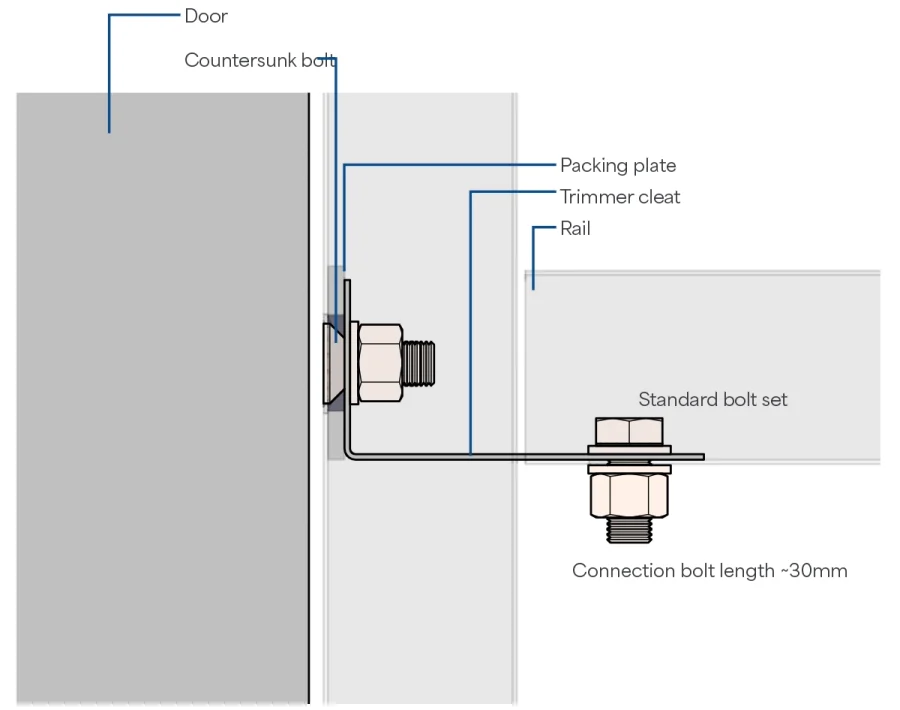

Holes are slotted in trimmer cleats providing hole alignment when using countersunk holes with packing plates, or a standard hole and bolt set. Trimmer cleats are desinged to allow a 3mm clearance from perpendicular sections. They are suitable for fitting to the inside or outside of the web of the joining section. All holes are punched for an M16 connection bolt set.
TECHNICAL:
| A | Series |
|---|---|
| 50 | 140 |
| 85 | 175 |
| 110 | 200 |
| 140 | 230 |
| 170 | 260 |
